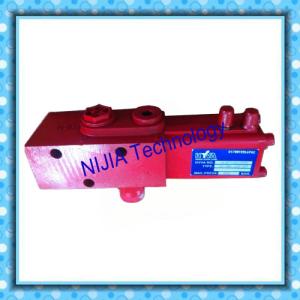

Red Hyva PT-1220-220 valve Power take off valve 14767322 Mounted in line or on the oil tank Single pressure
Product Features
Hyva offers a complete range of tipping valves to be used for different cylinder volumes. In the beginning of 2002
Hyva introduced the new PT-valve. The PT-valve can be used for flows from 80 up to 220 litre per minute. The
pressure settings are from 150 to 350 bar. The PT-valve has fully interchangeable pressure cartridges, so you
can adjust the pressure settings yourself. Dual pressure valves are available as well. For smaller flows you can
use the PT1140 or the 3DHM range.
The Hyva PT 1220 & 2220 tipping valves are constructed with a pilot operated pressure relief valve with fixed
pressure setting (by means of cartridges), which protects both the cylinder and the pump for overpressure. This
tipping valve is also designed to allow proportional lowering, which is of main importance when lowering (half)
loaded bodies. This tipping valve can be directly fitted to the Hyva oil tank, which reduces the number of hoses
and fittings and consequently the possibility of leakages. Additionally the Hyva tipping valve is unique in the
market as it has a peak pressure relief valve, to prevent serious damages in case of peak pressures.
The Hyva PT-valves & DHM valves can be mounted in line or directly on the oil tank. The PT-valve and the
DHM-valve can be mounted on the same block. The PT-valves are controlled with a Hyva air control or manually.
The DHM-valves are controlled by a cable control or by a Hyva air control.
Structure
| Part no. | Description | Max. press.
(Bar) | Ports | Flow
(L/min) | Weight
(kg) | Kit no. |
| 147 67 315 | Valve PT - 1220 - 150 | 150 | G1" | 220 | 6.4 | EC150
ED150 |
| 147 67 317 | Valve PT - 1220 - 170 | 170 | G1" | 220 | 6.4 | EC170
ED170 |
| 147 67 319 | Valve PT - 1220 - 190 | 190 | G1" | 220 | 6.4 | EC190
ED190 |
| 148 67 322 | Valve PT - 1220 - 220 | 220 | G1" | 220 | 6.4 | EC220
ED220 |
| 148 67 325 | Valve PT - 1220 - 250 | 250 | G1" | 220 | 6.4 | EC250
ED250 |
| 148 67 328 | Valve PT - 1220 - 280 | 280 | G1" | 220 | 6.4 | EC280
ED280 |
| 149 67 335 | Valve PT - 1220 - 350 | 350 | G1" | 220 | 6.4 | EC350
ED350 |
Delivery
1. The products will be sent out together by Fedex, DHL, TNT, or SF Express and so on.
2. Of cause, if you have a special requirements, we will do as you told!
3. Waiting for your inquiry.
Product List
| | Ordering code | type |
| 1 | 23A-L | Hydraulic Pressure
Dump Truck Controls Valves |
| 2 | 34MQK-E20L | Slow Down Dump
Truck Controls Manual Valves |
| 3 | 45SQF-00 | Combination Dump
Truck Controls Valves |
| 4 | Hyva-3D | Hyva 3 Way Dump Truck Controls
With Hnbr Seal And Pressure Reset |
| 5 | F22-L | 3/2 Way Dump Truck Controls Aluminum Hydraulic Limiting Valve |
| 6 | BKQF34-A | Proportional 2 way Dump truck Controls with 0.5-12 Bar For CAB |
| 7 | BKQF34-B | Automatic Locked Dump
Truck 2 Position Controls Valve |
| 8 | BKQF34-C | Automatic Dump Truck
PTO 3 Position Controls Valve |
| 9 | 5CV-D | Five Hole Dump Truck
Combination control valves |
| 10 | 6CV-D | 6 Hole Dump Truck
Combination control valves |
| 11 | F34-B | CAB Sectional Dump Truck Controls |
| 12 | FBH45-12 | Parker Chelsea Proportional
Dump Truck Controls With Fitting |
| 13 | FBH45-10 | Parker Chelsea Proportional
Dump Truck Controls |
| 14 | HXQF-24 | Hydraulic Dump Truck
Controls Aluminum Valve |
| 15 | 5551-8607010 | MAZ Spare Parts Dump Truck Controls And Limit Distributor Valve |
| 16 | 551605-8607010 | MAZ Spare Parts Dump Truck Controls And Limit Distributor Valve |
| 17 | 551605-8607010 | MAZ Spare Parts Dump Truck Controls And Limit Distributor Valve |
| 18 | DCM01 | 2 Way Distributor valves with
lever stop on Tip and Low position |
| 19 | 14750667H | Hyva 3 Way Dump
Truck Controls 14750667H |
| 20 | 71094 | Hyva 3 Way PTO Dump Truck Controls 71094B 223802 |
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or
leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not
responsible for returns, another of the company's sales of products enjoy one year from the date of shipment
quality assurance, according to the original quality standards, during warranty with product problems' need
confirmation testing by the manufacturer, the supplier to be solved ,the demand side due to storage, use, poor
maintenance caused by lower-quality product, and not raise objections.
Pictures show
In addition
The product include the diaphragm big/small and spring. If you have received the product has a problem, please
let me know, I will help you to solve the question first time.
